CMP-20 Type II - Serial & USB, ZPL II1

Description : Mobile Ptr, CMP-20 Type II - SER & USB, ZPL II*

---

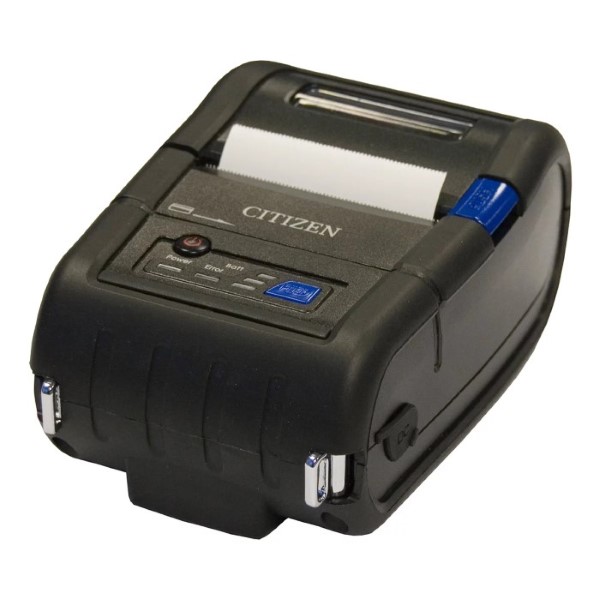

Citizen CMP-20II Mobile Receipt Printer

Overview:

• Compact and rugged 2-inch direct thermal mobile receipt printer.
• Designed for on-the-go printing needs in retail, courier, law enforcement, and ticketing applications.
• Supports multiple connectivity options including USB and serial interfaces.

Key Features:

• Print Technology: Direct Thermal
• Resolution: 203 dpi
• Print Speed: Up to 80 mm/s (3.15 inches/s)
• Print Width: 48 mm (1.89 inches)
• Media Width: 58 mm
• Media Roll Size: Up to 2-inch diameter, 0.75-inch core
• Interfaces: USB (mini B), Serial (RS-232 / mini DIN)
• Emulations: ESC/POS™, CPCL™, Zebra® ZPL II®
• Battery: Li-Ion, 7.4V, 1800 mAh
• Environmental Rating: Exceeds IP42, survives multiple drops of 1.5 meters
• Dimensions: 96 x 136 x 58 mm
• Weight: 420 g

Value:

• Ideal for mobile receipt printing in various industries.
• Rugged design ensures durability in demanding environments.
• Long battery life supports extended periods of mobile printing.
• Easy media loading and maintenance for user convenience.

What's in the box:

• Citizen CMP-20II Mobile Receipt Printer
• USB and Serial interface cables
• AC adapter and power cord
• Quick start guide
• Cleaning kit

Optional Accessories:

• Magnetic Stripe Reader (ISO 7811/2, JIS standards)
• Smart Card Reader (IC Card)
• Soft cases and shoulder straps
• Car adapter
• Additional batteries and external battery charger

Operating System Compatibility:

• Windows 7 & 10
• Windows Mobile 5, 6
• Linux CUPS
• iOS (with Bluetooth model)
• Android (with Bluetooth model)
• Development kits available for major platforms

Applications:

• Retail and Point-of-Sale (POS) transactions
• Mobile ticketing and event management
• Delivery and courier services
• Law enforcement field reporting
• Queue busting and customer service
